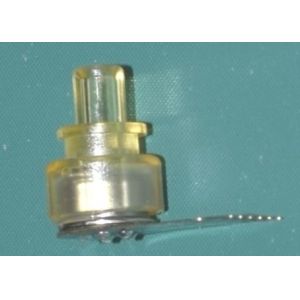

25G Receiver Optical Subassembly OSA With LC-UPC Receptacle

  • 1
  • 2

Brand Name : Optowix

Model Number : SRA-322-1001F

Place of Origin : China

MOQ : 1000pcs

Payment Terms : T/T

Supply Ability : 100Kpcs

Delivery Time : 5-8 working days

Packaging Details : ESD plastic case

Optowix PN : SRA-322-1001F

Product Name : 25G Receiver OSA with LC-UPC Receptacle Optical Sub-Assembly

SpeedRate : 25

Interface : LC

Contact Now

25G Receiver OSA With LC-UPC Receptacle Optical Sub-Assembly
Features
  • Single +3.3V power supply
  • Data rates up to 25Gbps
  • RSSI current output
  • With FPC
Applications
  • Optical link

Absolute Maximum Ratings

Parameter Symbol Min Max Unit Note
Storage Temperature Tstg -40 +85 ℃
Operating Case Temperature Tc -40 +85 ℃
TIA Supply Voltage Vcc - 5 V
Lead Soldering Temperature (Maximum 10 sec) TLS - +260 ℃

Electrical/Optical Characteristics (Tc=25℃, unless otherwise specified)

Parameter Symbol Min. Typ. Max. Unit Test Condition
Supply Voltage Vcc 3.1 3.3 3.5 mA
Supply Current Icc - 35 mW
Optical Wavelength λ 840 - 860 nm
Sensitivity Sen - - -9 dBm

850nm, 10Gbps,

PRBS231 -1,

BER=10-10,
